Thermostats




Safety Limit Thermostats

  •  Safety temperature limitation, with single-pole changeover microswitch
  •  Switching capacity contact connection 11-12 16 (2.5) A, AC 250 V Terminal for alarm contact connection 11-13 2 (0.4) A, AC 250 V
  •  Time constant conforming to DIN EN 14597
  •  3 mounting choices: pipe, pocket or wall mounting
  •  Switch-off temperature can be checked through the viewing window in the housing
  •  Compensation of ambient temperature at switching mechanism and capillary tube
  •  Fail-safe design, rupture of the capillary tube causes contact connection 11-12 to open
  •  Internal reset facility covered by removable threaded nipple
  •  IP43 or IP65 protection class
  •  Push-in terminals for fast installation

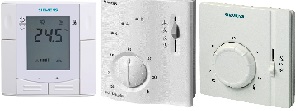

Room Temperature Controllers

  • Output for on / off valve actuator
  • Outputs for three-speed fan
  • Control depending on the room or return air temperature (RCC10) Automatic heating / cooling changeover
  • Operating modes of RCC10: normal, energy saving and frost protection mode or OFF
  • Operating modes of RCC10.1: normal and energy saving mode or OFF
  • Operating mode changeover input for remote control
  • Function for avoiding damage resulting from moisture (RCC10.1)
  • Selectable control parameters (RCC10)
  • Operating voltage AC 230 V
